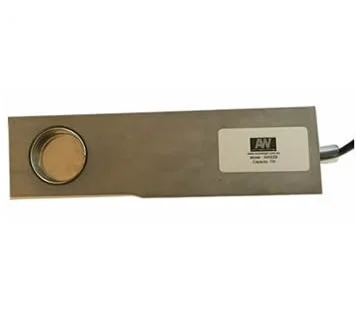

Stainless Steel Shear Beam – AWSSB
The AWSSB is a versatile stainless steel shear beam load cell designed for precision in various weighing applications.
The load cell is sealed to IP68 protection with welded sealing.
Key attributes include:
Versatility: Available in 9 capacities ranging from 0.5t to 10t
Wide Application: Ideal for bagging scales, platform scales, hopper scales, and other industrial weighing systems
High Performance:
Output Sensitivity: 3±0.08 mV/V
Minimum Dead Load: 0%
Safe Overload: 150%
Ultimate Overload: 300%
Customizable Setup: Compatible with accessories like digital readouts, swivel feet, and mounting plates
The AWSSB combines durability of stainless steel with the precision of shear beam technology, offering a robust solution for diverse industrial weighing needs. Its range of capacities and overload protection make it suitable for both light and heavy-duty applications.
Capacities (t): 0.5, 1, 1.5, 2t, 2.5t, 5t and 10t
