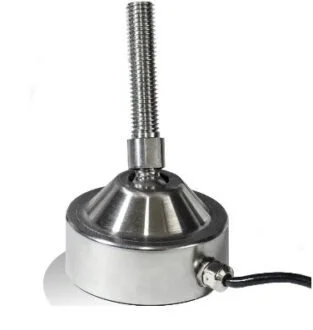

The swivel foot load cell is designed to install directly under the existing support structure of a floor scale, packing machine, silo, hopper, bin or other vessels, enabling the contents to be weighed.

AWSF eliminates the complex installation process.

The AWSF Kit is an innovative and versatile weighing solution designed specifically for bagging and bailing applications. This comprehensive kit features the AWSF swivel foot load cell, which offers a streamlined approach to weight measurement in various industrial settings.

Key Features:

1. Versatile Application: Suitable for a wide range of structures including:

   • Floor scales, Packing machines, Silos, Hoppers, Bins, Other vessels.

2. Easy Installation:

   • Designed to install directly under existing support structures, Eliminates complex installation processes, Requires only an M12 threaded hole underneath the frame

3. Integrated Design:

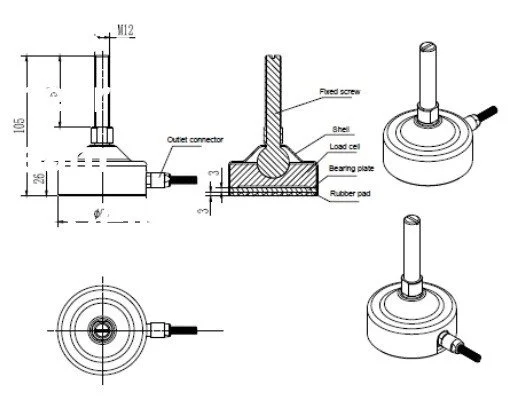

   • Replaces traditional load cell mount assemblies (load cell, spacer plate, standard swivel foot), Strain gauges fixed in a laser-cut pocket for precision and protection

4. Environmental Protection: Sealed construction to withstand challenging industrial environments

5. Non-Axial Load Handling: Engineered to manage loads that are not perfectly aligned with the vertical axis

6. Adjustable Height: Allows for easy leveling of the scale, enhancing accuracy and performance

7. Hassle-Free Setup: Simplified installation process reduces downtime and technical complexity

The AWSF Kit represents a significant advancement in bagging and bailing scale technology. By integrating the load cell directly into a swivel foot design, it offers a compact and efficient solution that addresses many of the challenges associated with traditional weighing setups.
