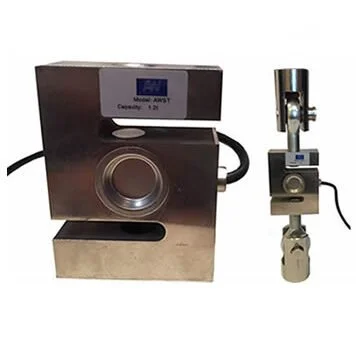

S-Type (Tension / Compression) – AWST

Capacities (t): 1.2, 2, 3 and 5

The AWST is a high-accuracy S-beam load cell engineered for both tension and compression applications. This versatile sensor offers precise measurements in various industrial scenarios.

Key Features of S-Type (Tension / Compression) – AWST:

  1. Dual-Mode Functionality: Excels in both tension and compression measurements, unlike typical S-type load cells primarily used for tension.

  2. Multiple Configuration Options: Suitable for single or multiple-cell setups, adapting to diverse measurement needs.

  3. High Precision: Features a Full Scale Output of 2±0.01 mV/V and a Combined Error of just 0.030% FS.

  4. Robust Design: Constructed from plated tool steel with IP67 sealing for durability in challenging environments.

  5. Capacity Range: Available in 1.2t, 2t, 3t, and 5t models to suit various load requirements.

Enhancing Accessories:

  • Digital readout for easy data interpretation

  • Top and bottom Rod end bearings for proper alignment

  • Load buttons for improved force distribution
